Straight

The simplest and most frequently used type of stylus, suitable for the majority of probing applications.

Probing System+
Thread+
Ball diameter+
Effective working length+
Stem material+
Tip material+
ProductDetail
Image of A-5555-3787

M5 Ø3 mm silicon nitride ball, tungsten carbide stem, L 50 mm, ML 40 mm, for Zeiss applications A-5555-3787

Detail
Image of A-5555-3788

M5 Ø4 mm silicon nitride ball, tungsten carbide stem, L 33.5 mm, ML 23.5 mm, for Zeiss applications A-5555-3788

Detail
Image of A-5555-3789

M5 Ø4 mm silicon nitride ball, tungsten carbide stem, L 64 mm, ML 54 mm, for Zeiss applications A-5555-3789

Detail

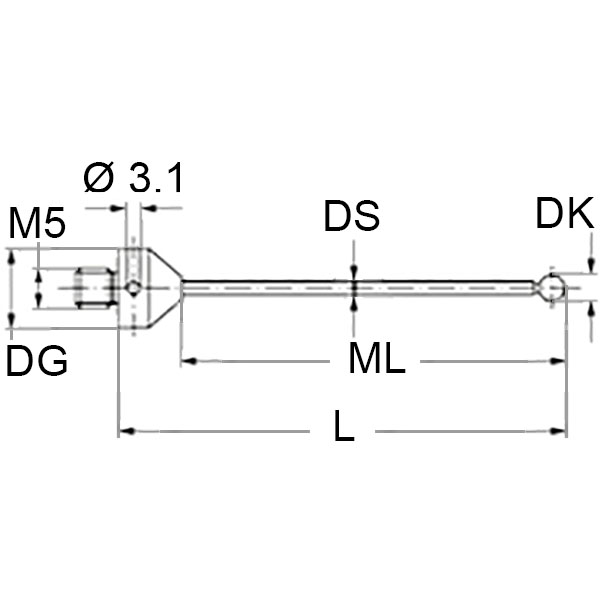

Image of A-5555-3791

M5 Ø5 mm silicon nitride ball, tungsten carbide stem, L 50 mm, ML 40 mm, for Zeiss applications A-5555-3791

Detail
Image of A-5555-3792

M5 Ø5 mm silicon nitride ball, tungsten carbide stem, L 53 mm, ML 43 mm, for Zeiss applications A-5555-3792

Detail
Image of A-5555-3793

M5 Ø5 mm silicon nitride ball, tungsten carbide stem, L 75 mm, ML 65 mm, for Zeiss applications A-5555-3793

Detail
Image of A-5555-3794

M5 Ø5 mm silicon nitride ball, tungsten carbide stem, L 100 mm, ML 90 mm, for Zeiss applications A-5555-3794

Detail
Image of A-5555-3797

M5 Ø8 mm silicon nitride ball, tungsten carbide stem, L 63.5 mm, ML 50.5 mm, for Zeiss applications A-5555-3797

Detail
Image of A-5555-3826

M5 Ø2 mm ruby ball, tungsten carbide stem, L 33.5 mm, ML 24.5 mm, long thread, for Zeiss applications A-5555-3826

Detail
Image of A-5555-3827

M5 Ø2.5 mm ruby ball, tungsten carbide stem, L 34 mm, ML 25 mm, long thread, for Zeiss applications A-5555-3827

Detail
