Straight

The simplest and most frequently used type of stylus, suitable for the majority of probing applications.

Probing System+
Thread+
Ball diameter+
Effective working length+
Stem material+
Tip material+
ProductDetail
Image of A-5555-1077

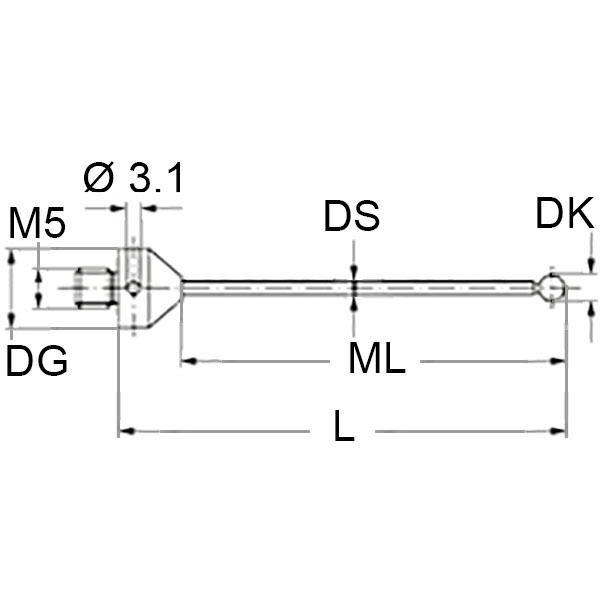

M5 Ø2 mm ruby ball, tungsten carbide stem, L 20 mm, ML 10 mm, for Zeiss applications A-5555-1077

Detail
Image of A-5555-1095

M5 Ø0.6 mm ruby ball, tungsten carbide stem, L 32 mm, ML 12 mm, for Zeiss applications A-5555-1095

Detail
Image of A-5555-1157

M5 Ø0.5 mm ruby ball, tungsten carbide stem, L 22 mm, ML 13 mm, long thread, for Zeiss applications A-5555-1157

Detail
Image of A-5555-1271

M5 Ø5 mm ruby ball, tungsten carbide stem, L 100 mm, ML 90 mm, for Zeiss applications A-5555-1271

Detail
Image of A-5555-1425

M5 Ø3.5 mm ruby ball, tungsten carbide stem, L 100 mm, ML 85 mm, for Zeiss applications A-5555-1425

Detail
Image of A-5555-1495

M5 Ø1 mm ruby ball, tungsten carbide stem, L 30 mm, ML 20 mm, for Zeiss applications A-5555-1495

Detail
Image of A-5555-1563

M5 Ø2 mm ruby ball, tungsten carbide stem, L 25 mm, ML 15 mm, for Zeiss applications A-5555-1563

Detail
Image of A-5555-1773

M5 Ø0.5 mm ruby ball, tungsten carbide stem, L 32 mm, ML 12 mm, for Zeiss applications A-5555-1773

Detail
Image of A-5555-1842

M5 Ø0.6 mm ruby ball, tungsten carbide stem, L 22 mm, ML 13 mm, long thread, for Zeiss applications A-5555-1842

Detail
Image of A-5555-1843

M5 Ø1 mm ruby ball, tungsten carbide stem, L 22.5 mm, ML 13.5 mm, long thread, for Zeiss applications A-5555-1843

Detail
