M8 plate metrology fixturing table, frame 900 x 1200 mm


Product code: R-TM-1200900-30-8

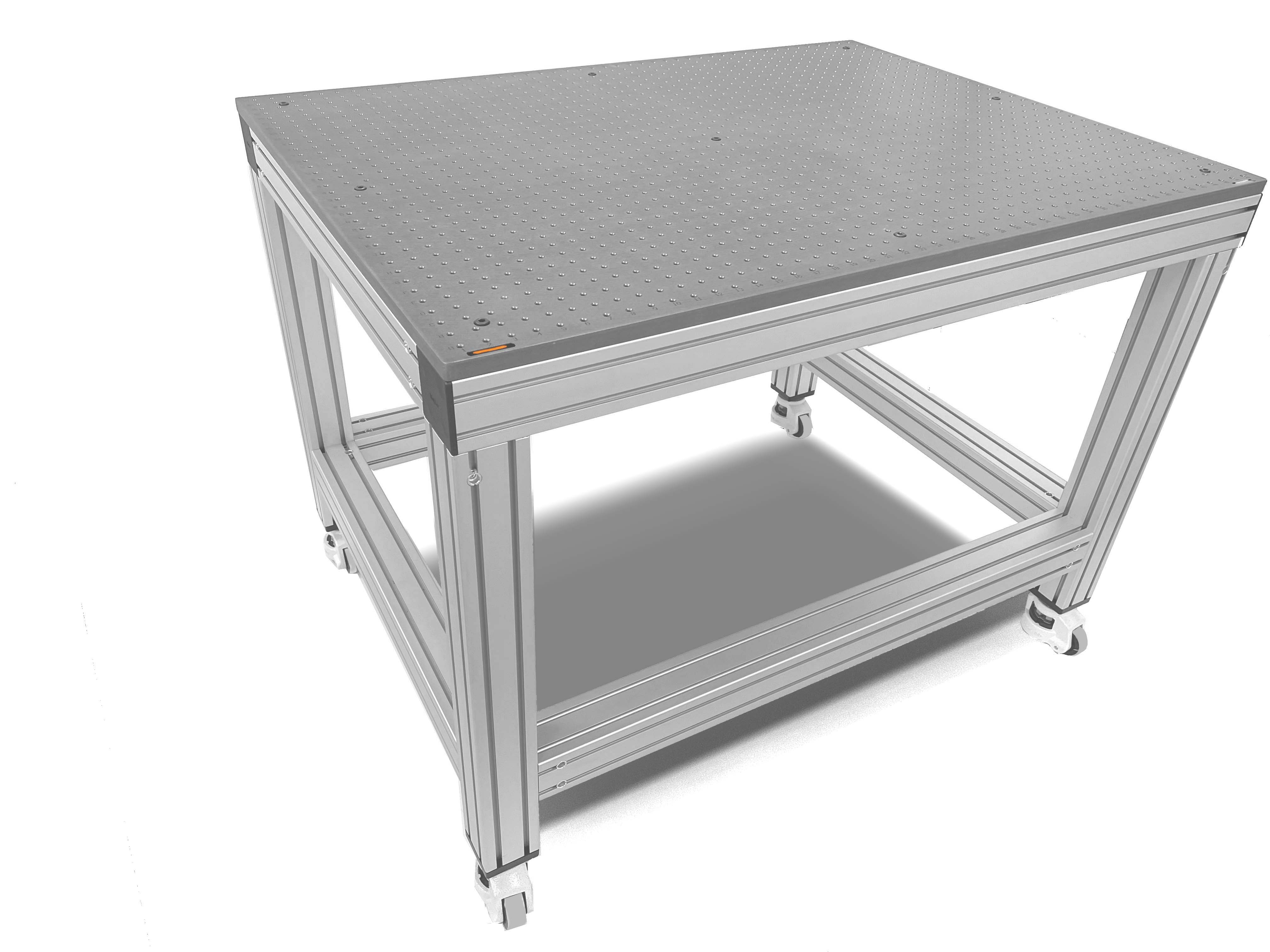

Image of R-TM-1200900-30-8
Metrology fixturing tables offer a flexible solution for any portable CMM.


Our metrology table top is created using a cast aluminium plate, supported with rigid aluminium extrusion legs that can withstand large and heavy parts. Metrology fixturing tables are ideal for use in any industry but are particularly beneficial for users inspecting automotive body parts.

The table's modular construction provides endless flexibility to mount portable CMMs. The fixture plate can also be ordered with a black anodise finish to minimise reflections for optical inspection.

Price excludes shipment costs.

NOTE: Order a universal adapter plate R-PAACU to allow fitment of any articulating arm to your metrology table.

Technical table

Height (mm)900
MaterialAluminium
Measurement systemMetric
ThreadM8
Width (mm)1200

Technical documentation

Image of N-6748-0066
N-6748-0066
