Straight

The simplest and most frequently used type of stylus, suitable for the majority of probing applications.

Probing System+
Thread+
Ball diameter+
Effective working length+
Stem material+
Tip material+
ProductDetail
Image of A-5555-0026

M5 Ø5 mm ruby ball, tungsten carbide stem, L 75 mm, ML 65 mm, for Zeiss applications A-5555-0026

Detail

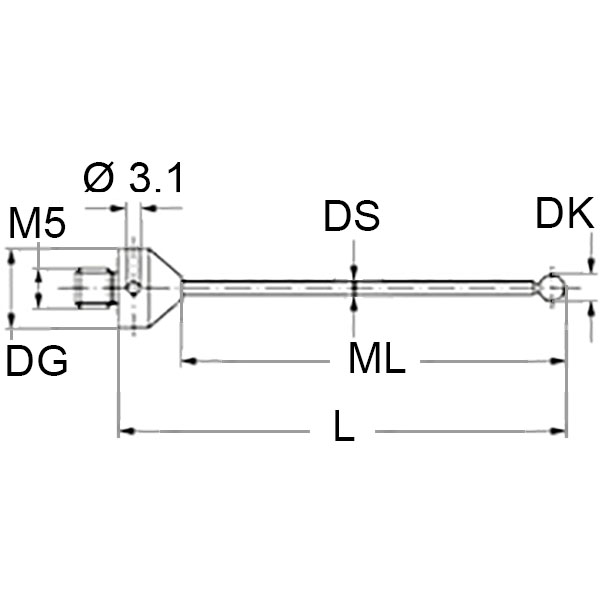

Image of A-5555-0027

M5 Ø6 mm ruby ball, tungsten carbide stem, L 54 mm, ML 44 mm, for Zeiss applications A-5555-0027

Detail
Image of A-5555-0028

M5 Ø7 mm ruby ball, tungsten carbide stem, L 55 mm, ML 45 mm, for Zeiss applications A-5555-0028

Detail
Image of A-5555-0029

M5 Ø8 mm ruby ball, tungsten carbide stem, L 63.5 mm, ML 50.5 mm, for Zeiss applications A-5555-0029

Detail
Image of A-5555-0030

M5 Ø8 mm ruby ball, tungsten carbide stem, L 63.5 mm, ML 41.5 mm, for Zeiss applications A-5555-0030

Detail
Image of A-5555-0031

M5 Ø8 mm ruby ball, tungsten carbide stem, L 74 mm, ML 61 mm, for Zeiss applications A-5555-0031

Detail
Image of A-5555-0032

M5 Ø8 mm ruby ball, tungsten carbide stem, L 75 mm, ML 62 mm, for Zeiss applications A-5555-0032

Detail
Image of A-5555-0033

M5 Ø8 mm ruby ball, tungsten carbide stem, L 100 mm, ML 87 mm, for Zeiss applications A-5555-0033

Detail
Image of A-5555-0034

M5 Ø8 mm ruby ball, tungsten carbide stem, L 114.5 mm, ML 101.5 mm, for Zeiss applications A-5555-0034

Detail
Image of A-5555-0035

M5 Ø8 mm ruby ball, tungsten carbide stem, L 114.5 mm, ML 92.5 mm, for Zeiss applications A-5555-0035

Detail
