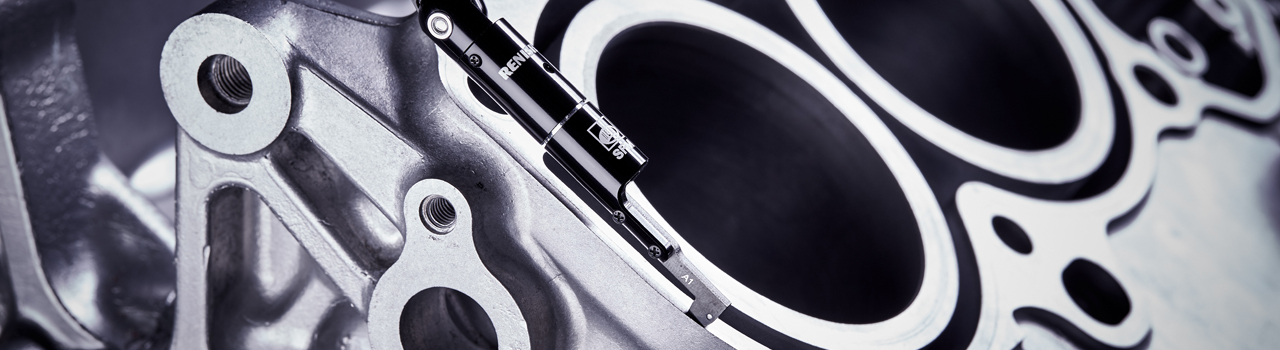

5-axis multi-sensor measurement system
The REVO system uses synchronised motion and 5-axis measurement technology to minimise the dynamic effects of CMM motion at ultra high measurement speeds.
This is achieved by letting the REVO-2 head do the fast demanding motion while the CMM moves in a linear slow fashion. The use of a flexible tip-sensing probe further adds to the system's accuracy and performance. The removable probe system, used in conjunction with a low cost changer, provides added system flexibility.
Speed, accuracy, agility
As a new installation or an accredited upgrade, the REVO 5-axis measurement system offers:
Surface finish measurement and dimensional inspection.
15% to 50% cycle time savings.
Maximised throughput, minimised capital investment.
Renishaw offers a range of CMMs optimised for REVO 5-axis multi-sensor measurement.
New eBook: REVO 5-axis measurement technology
High-speed measurement
Up to 500 mm/sec resulting in increased part throughput
Data collection rates up to 4,000 points per second
Infinite positioning and 5-axis motion reduces non-productive transitions between features
Rapid calibration with all positions inferred means more time measuring
High system accuracy
5-axis scanning minimises CMM motion and the associated dynamic errors
Stylus wear minimised by extremely low scanning forces
Infinite positioning and five-axis motion aid access to difficult features
Tip-sensing further adds to the systems' accuracy and flexibility
Great flexibility
Maximum reach up to 800 mm from centre of head rotation
Multi-sensor probe and stylus changing capability
Renishaw UCCserver software application (based on I++ DME command protocol) provides the interface for REVO-2 control
The removable probe system, used in conjunction with a low cost changer, provides added system flexibility
